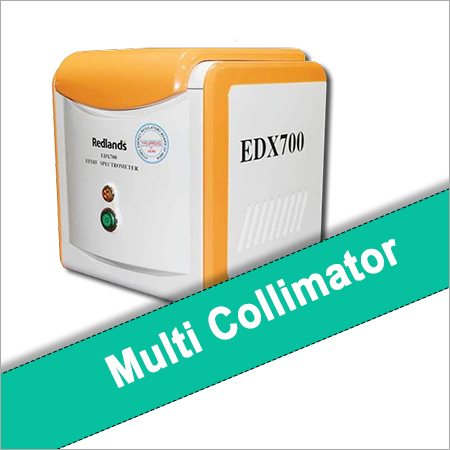

EDX700

X-ray Source

X-ray Tube Ti or W cathode

HV Generator

50kv adjustable in 200V steps

Current adjustable in 1μA steps

Detector

Gas filled proportional counter

Detection Range

Au,Ag,Pt,Pd,Rh,Ru,Cu,Cd,Zn,Ni

Measurement Range

1 – 99.99%

Measurement Time

30 – 300 seconds

Measurement Precision

± 0.1% – In homogeneously melted sample

(Accuracy levels in comparison with fire assay result only)

Measurement Area

20mm

Working Temperature

15-25ºC

Relative Humidity

10 – 80%

System Requirement

1External PC with Windows XP or Windows 7(32bit)

Software

Windows Based

Power Requirement

230V , 50Hz

Power Consumption

70W

Dimension(LxWxH)

350mm X 370mm X 420mm

Sample Chamber

290mm X 280mm X 95mm

Weight

30kg
